【Case of Fireproof Lining Board for Glass Curtain Wall】Haikang  Robotics Intelligent Manufacturing (Tonglu) Base

Project Background

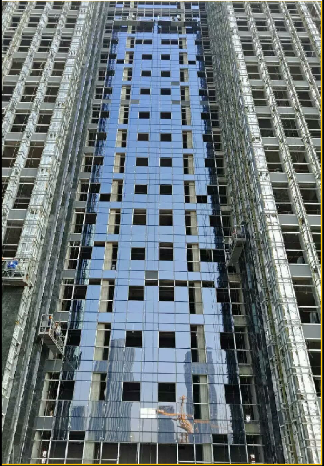

       In recent years, with the rapid development of social economy, the application of glass curtain walls has become increasingly widespread. Therefore, the setting method of fire separation between layers of glass curtain walls has attracted more attention in building fire protection design. Issues such as how to make it meet the needs of architectural modeling while ensuring the fire safety of fire separation between layers of glass curtain walls are particularly important.

       Yuanyang Weili  curtain wall fireproof boards are made from main inorganic materials such as kaolin and wood pulp fibers through processes including mixing, forming, demolding, high-temperature steam curing, and drying. The boards are non-combustible materials, featuring a fire resistance rating of Class A, high strength, good thermal insulation performance, and strong weather resistance.

Project Overview

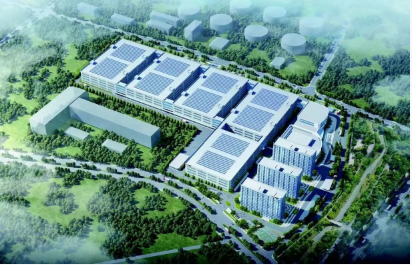

Image source: Internet. Please contact us to remove if there is any infringement.

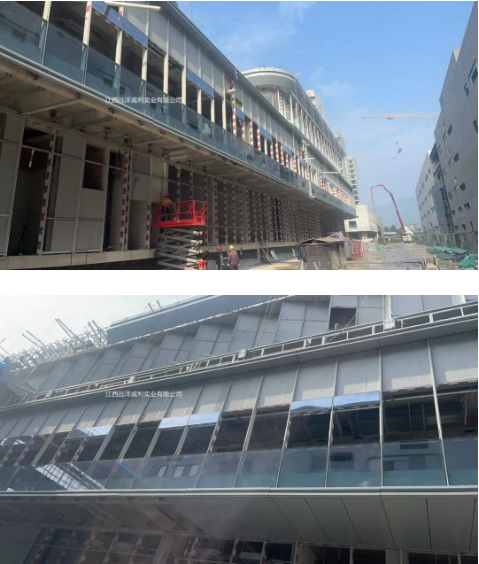

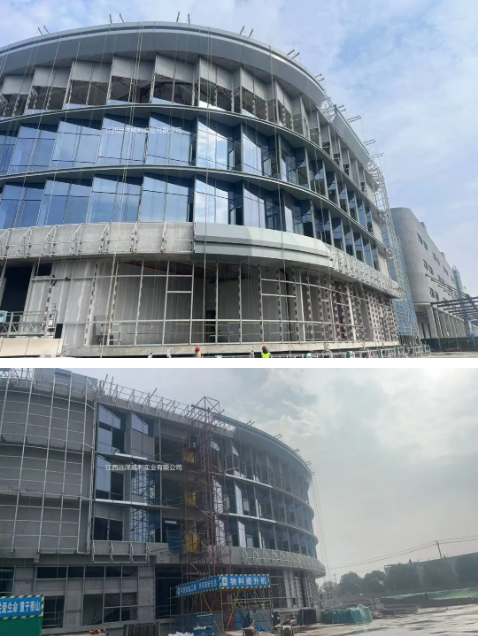

       The Haikang Robotics Intelligent Manufacturing (Tonglu) Base Project is a major construction project in Hangzhou, Zhejiang Province in 2024, with a total construction area of approximately 180,000 square meters. The main construction contents include H3-H6 workshops, chemical warehouses, multi-storey corridors and related supporting facilities.

      This project not only requires the building's appearance to be modern and energy-efficient, but also needs to meet the fire protection requirements for densely populated places specified in the "Code for Fire Protection Design of Buildings" GB50016. Additionally, it is necessary to achieve the integration of multiple performances such as fire protection, thermal insulation, and moisture resistance in the backing space. The problems of insufficient strength and poor thermal stability of conventional fire protection materials under the same thickness have always caused hidden concerns about the safety factor of the curtain wall system.

Case Details
Project Name: Haikang Robotics Intelligent Manufacturing (Tonglu) Base
Applied Product: Curtain Wall Fireproof Board
Application Part: Fireproof Backing of Curtain Wall
Product Application Highlights: Lightweight (easy for construction and installation), low thermal conductivity (excellent fireproof and heat insulation effect), high durability (the fire resistance of the building will not be affected by time)

Curtain wall fireproof boards are applied to the following three building parts of glass curtain walls:

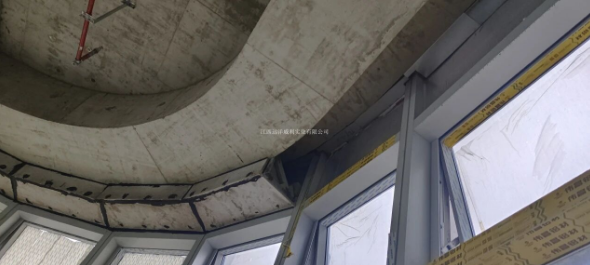

 1. Backing of glass curtain walls

2. Fireproof cornice structure of glass curtain walls

3. Fireproof interlayer sealing of glass curtain walls
