【LIS Wall Panel Case】LIS Wall Panels Help Jiangxi Xinyuan Plastic Industry Build Efficient Fireproof Partition Walls

       In recent years, with the progress of Chinese society, the development of high-rise buildings, and the continuous improvement of people's living requirements, traditional building materials can no longer meet the development of the construction industry due to their huge consumption of natural resources and severe impact on the ecological environment. Driven by the national energy conservation and emission reduction policies and the sustainable development strategy, lightweight partition wall panel materials, which are green, environmentally friendly, lightweight and of excellent quality, have been increasingly recognized by society.

     Yuanyang Weili LIS wall panels are new energy-saving, green and multi-functional fire-resistant building materials developed and produced for modern multi-storey and high-rise frame buildings and indoor spaces of ecological residences. They can be widely used in internal and external partitions, bathrooms, floor slabs, pipe wells and other areas of various buildings. Their birth marks an inevitable trend of upgrading wall materials - replacing traditional blocks and clay bricks. With their brand-new architectural concepts and excellent performance, they are new wall materials that meet the green and energy-saving needs of modern buildings.

- Project Background -

      Jiangxi Xinyuyuan Plastic Industry Co., Ltd. is a key investment promotion project of the Jiangxi Provincial Government. The company is located in the Circular Economy Industrial Park of Yujiang District, Yingtan City, Jiangxi Province, with a total construction area of approximately 50,000 square meters, mainly producing high-end plastic products. According to the requirements of fire protection codes, the core production area of the factory building needs to be equipped with fire partitions with a fire resistance rating of ≥ 4 hours. At the same time, it faces challenges such as tight construction schedules and complex construction environments.

-Project Details-

Project Name: Jiangxi Xinyuyuan Plastic Industry Co., Ltd.
Applied Product: LIS wallboard
Usage Specification: 610*2440*100mm
Application Part: Fireproof partition wall
Product Application Highlights: Fire resistance time up to 4 hours, high construction efficiency, low overall cost, reduced structural load, and improved building safety performance.

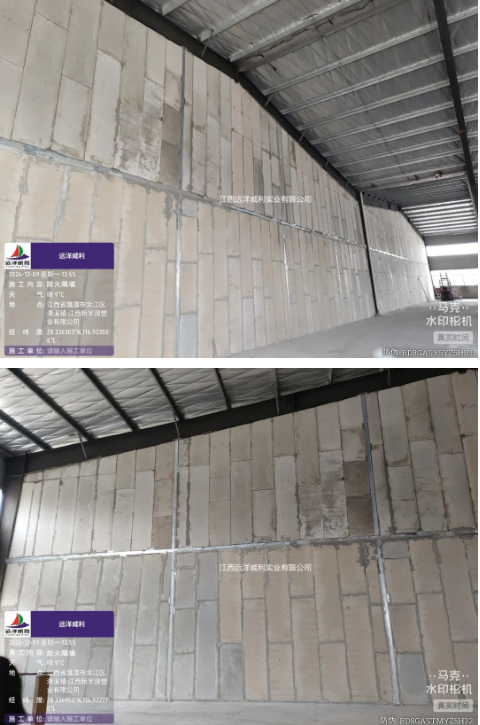

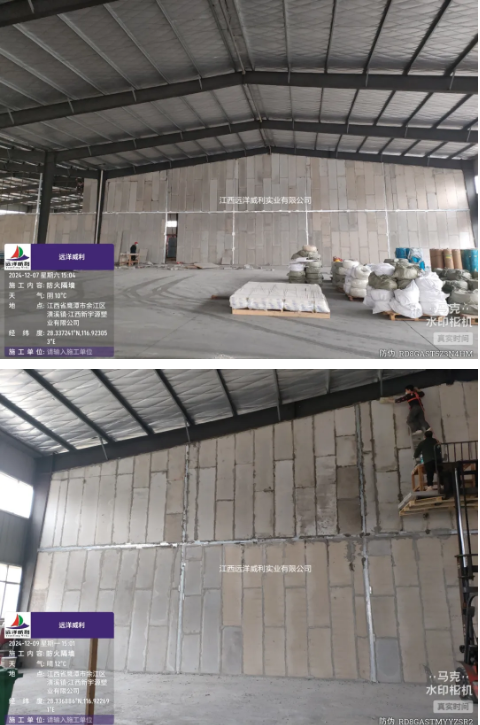

-Project Image-

Pain points of traditional solutions:

1. The traditional concrete masonry process takes 7-10 days per section, which is difficult to keep up with the project schedule;

2. On-site wet work causes dust pollution, affecting the cross-construction of other processes;

3. The composite scheme of fireproof coating + steel structure exceeds the budget by 15%.

Solution: Yuanyang Weili LIS Wall Panel Fireproof Partition System

After multiple comparisons and selections, the project team finally chose the Yuanyang Weili LIS-100 firewall board. The specific advantages of the scheme are as follows:

Core highlight 1: Improve construction efficiency
- Modular installation: standard board size 610×2440mm, making construction faster;
- Dry construction: no wet work throughout the process, enabling seamless interleaved construction with the pre-embedding of water and electricity pipelines, shortening the construction period by 50% compared with the original plan.


Core highlight 2: Excellent fire resistance

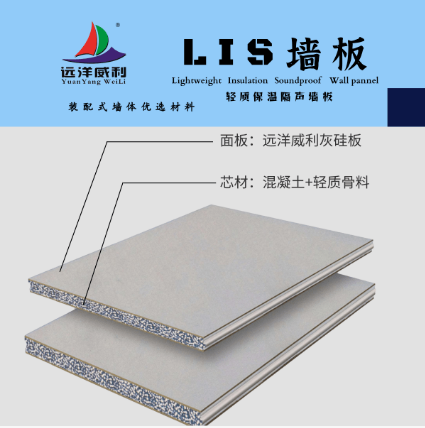

- Three-layer composite structure: 9mm low-density ash-silicon base plate (outer layer) + concrete and lightweight aggregate + 9mm low-density ash-silicon base plate (outer layer);
- Passed the ultimate fire resistance test: after being exposed to fire for 4 consecutive hours, the integrity and heat insulation performance meet the standards.

Application Summary:

 The successful application of Yuanyang Weili  LIS wall panels in this project has verified its three core values in the field of industrial construction:

   Construction: Standardized installation procedures reduce technical dependency;

    Fire resistance: The triple protection structure of low-density ash-silicon base panels breaks through traditional limits;

    Economy: Significant advantages in comprehensive life-cycle costs. This case provides an innovative solution for the construction of similar industrial plants and has currently formed a demonstration effect in places such as Jiangxi and Zhejiang.

- Application Product Introduction -
